General Dimensional Tolerances For Sheet Metal Formed Parts

General tolerance iso 2768 does not specify where to use these tolerances.

General dimensional tolerances for sheet metal formed parts.

It applies to the dimensions of work pieces that are produced by metal removal or are formed from sheet metal. Dimensional tolerances only apply to part in constrained state 3. However on the sketches i was given the inside width of the u is specified possibly because the inside surfaces will mate with another part. General dimensional tolerances for parts formed.

General dimensional tolerance of blanking unit mm 1. And for machined components iso 27 68 fh can be used. I was given several sheet metal parts they are basically u shaped with three flat sides. 1 all manufacturing tolerances used up to that point such as laser cutting tolerances welding tolerances and more 2 all bend tolerances for the entire part added together we call this an uncontrolled dimensions because there are additional tolerances to consider.

As a designer if you carefully consider the manufacturer s tolerances when designing you will have a greater outcome than simply designing and assuming all parts are nominal size. Sms is not responsible for distortion of internal features inside bend areas applies to all internal features applies to flat part length up to 24 00. Flat part length over 24 00 tolerance is 0 010 k l a sheet 1 of 1 sms sheet metal tolerances do not scale drawing. I know the standard is to dimension the outside of the part along with the inside radii.

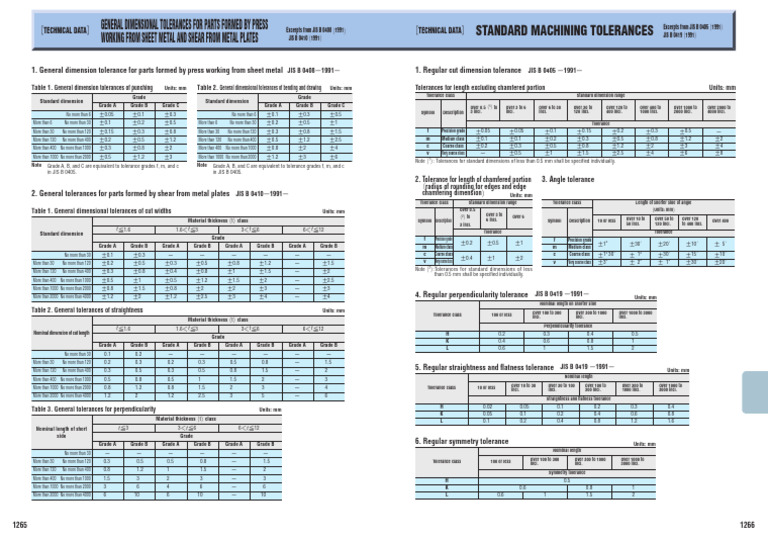

Uncontrolled dimensions contain two different categories of tolerances. General dimensional tolerances for parts formed excerpt from jis b 0408 0410 1991 general dimensional tolerance exce rpt f om jis b 045 19 by press working from sheet metal and shear from metal plates technical data technical data table 1. As per design requirements and manufacturing capability tolerance class is defined. General dimensional tolerance of blanking unit mm 1.

General dimensional tolerances for parts formed by press excerpts from jis b 0408 1991 working from sheet metal and shear from metal plates jis b 0410 1991 technical data 1. Tolerances for linear and angular dimensions without individual tolerance indications. Regular cut dimension tolerance jis b 0405 1991 tolerances for length excluding chamfered portion units. General dimensional tolerances for parts formed excerpt from jis b 0408 0410 1991 general dimensional tolerance exce rpt f om jis b 045 19 by press working from sheet metal and shear from metal plates technical data technical data table 1.

Furthermore the parts formed by press working from sheet metal mean those which have been formed by press working of punching bending and drawing from sheet metal and do not include those formed by shear working from sheet metal. This part is intended to simplify drawing indications and specifies general tolerances in four tolerance classes. Protocase commits to supply parts to the dimensional tolerances noted in this resource unless we have agreed to other tolerances when quoting your job.
